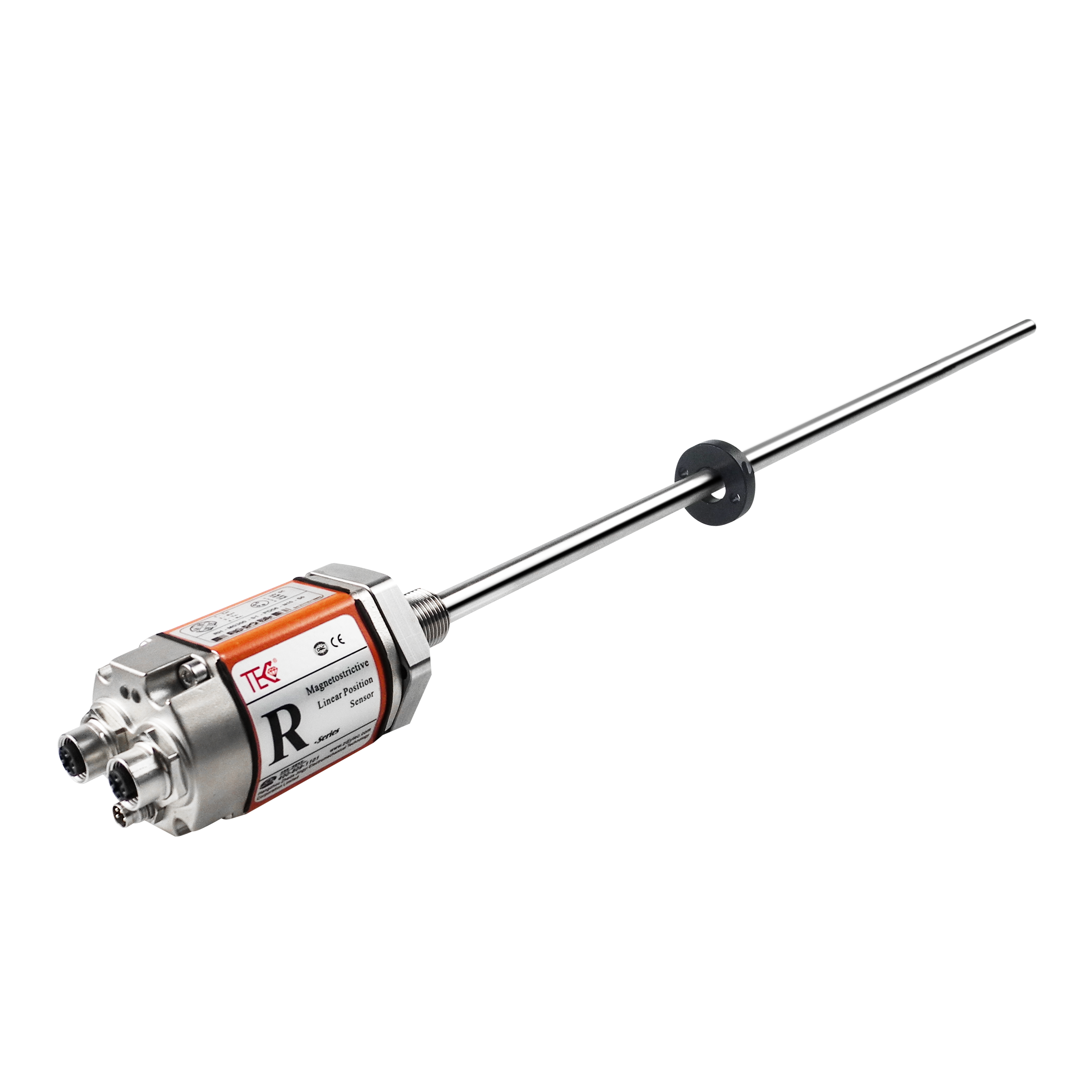

Magnetostrictive Linear Position Sensors RH/RP-Profinet

Typecode: RH/RP
Superior performance rod position sensors for demanding applications
  • Rugged and fully enclosed design
  • Не изнашиваемый, бесконтактный метод измерения
  • Linear measurement, absolute output
  • Nonlinearity less than 0.01%
  • Простая диагностика, мониторинг состояния светодиодов в режиме реального времени
  • The repetition accuracy is less than 0.001%
  • Digital technology, stable and reliable

Key Features

Output: Profinet

Measuring length: 25~5500

Repeat accuracy: <±0.001% of full scale, min ±1µm
Non-linearity: <±0.01% of full scale, min ±50 µm
Operating voltage Ub: +24Vdc ± 20%
Ambient temperature: -40℃ ~ +85℃
Mechanical configuration: Fastening M18 threads, Fastening 3/4" threads, Fastening M20 threads
Housing material: Aluminum alloy
IP rating: IP67 for RH/IP65 for RP
Approval/Conformity: CE
