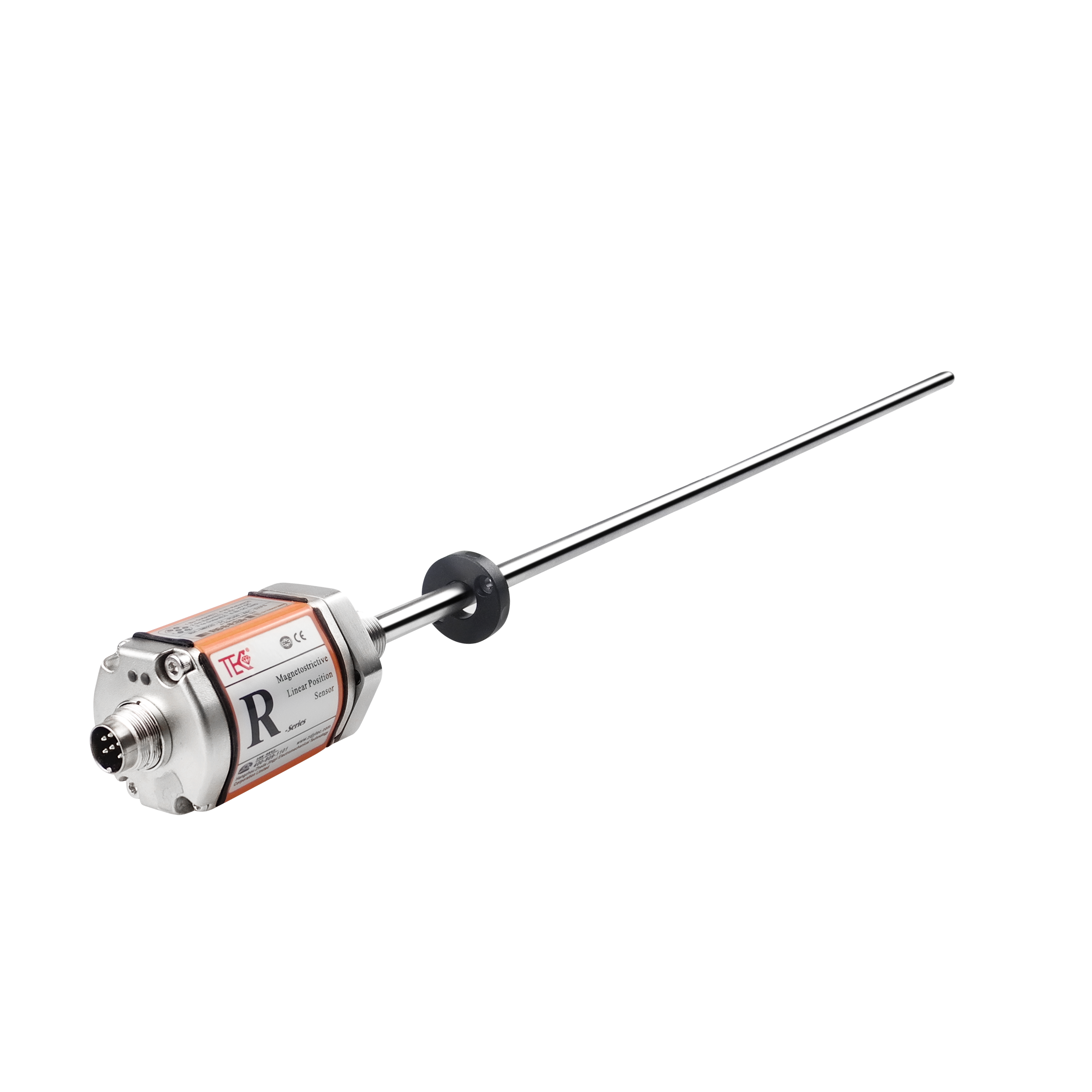

Magnetostrictive Linear Position Sensors RH/RP- Start/Stop

Typecode: RH/RP
Superior performance rod position sensors for demanding applications
  • Rugged and fully enclosed design
  • Не изнашиваемый, бесконтактный метод измерения
  • Простая диагностика, мониторинг состояния светодиодов в режиме реального времени
  • No need to return to zero, absolute displacement output
  • Stable and reliable, using digital analog technology
  • Конструкция с низким энергопотреблением эффективно снижает нагрев системы

Key Features

Output: Start/Stop

Measuring length: 25~5500

Repeat accuracy: <±0.001% of full scale, min ±1µm
Non-linearity: <±0.01% of full scale, min ±50 µm
Operating voltage Ub: +24Vdc ± 20%
Ambient temperature: -40℃ ~ +85℃
Mechanical configuration: Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threads
Housing material: Aluminum alloy
IP rating: IP67 for RH/IP65 for RP
Approval/Conformity: CE
